Nelson 300 Series Automatic Water
Call to order (248) 628-6000
Choose from two different 300 models with stainless steel or aluminum housing to fit your specific stall or pasture installation requirements.
MODEL SPECIFICATIONS & MOUNTING OPTIONS
Model 300-8 300-24
House Material Aluminum or Stainless Steel Aluminum or Stainless Steel
Height 9" 25"
Capacity 10-12 Horses 10-12 Horses
Diameter 13" 13"
Optional 120 VAC, 200 Watt, 1.6 Amp 120 VAC, 200 Watt, 1.6 Amp Immersion Heater
Housing Material: Your choice of high strength, 0.105″ thick 304 stainless steel or aircraft grade, 0.125″ thick 6061 aluminum.
Optional Heater: Fully insulated immersion type heater. 2-wire with ground connection. Thermostat and waterer housing insulation included.

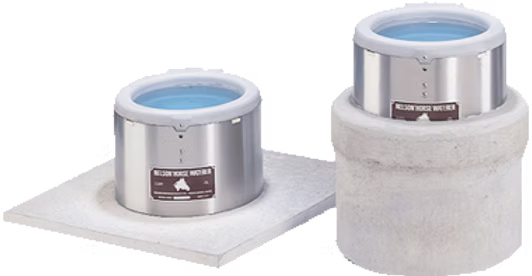

Pour a concrete pad for smaller animals
or mount in the bell of a concrete sewer pipe.
Bolt to a poured concrete pad to
water taller animals.
Large 13″ bowl serves more horses
and is well suited for fence line

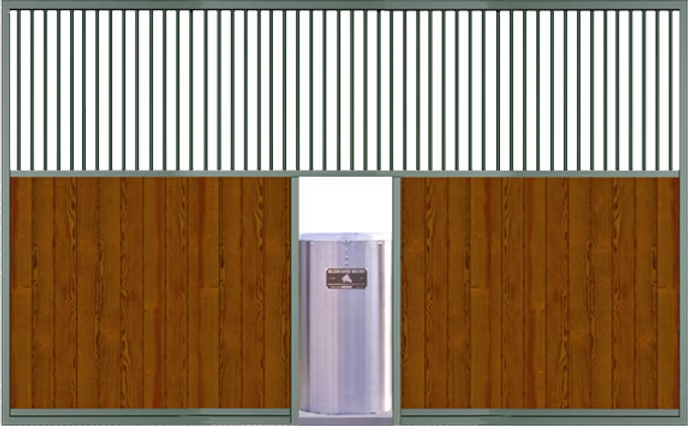

Ideal for between the stall
Proven design features provide years of reliable operation. Only one moving part makes the 300 Series easy to maintain.
Flip-top Stainless Steel drinking bowl is rust-free and makes cleaning the bowl a simple process.
Nelson Principle trouble-free, gravity actuated water valve replenishes drinking water while horses drink with no troublesome floats or paddles to cause problems.
No rust stainless steel or aluminum housings with all welded construction keep Nelson Automatic Horse Waterers looking new even after years of use, unlike painted waterers that chip and rust or plastic waterers that fade and deteriorate from the sun.
Two mounting options, either on concrete pad or in concrete pipe to take years of abuse.
Optional electric water heater. Immersion type heater, fully insulated, is energy efficient and thermostatically controlled for year ’round operation. Heater and thermostat feature a three year warranty.
COLD WEATHER INSTALLATION
All Nelson Automatic Horse Waterers are fully guaranteed for one year. Heaters and thermostats are warranted for three years.
